8x8 RGB Dot Matrix Display as Multi-Function Display (NEWS, Emoticons, Time, etc)

 8x8 RGB DOT MATRIX DISPLAY as
CLOCK, EMOTICON DISPLAY, NEWS FEED DEVICE



  • Would be interesting to build a multi-function RGB color display device.
  • Good to have  display of time, images and any other chamak (custom messages, RSS Feeds,etc)
  • ESP has good support for RGB Led via the Fastled library.
  • Bought and interfaced an 8x8 RGB from an online store with an esp8266
  • Fabricated a casing with the face and the box from a local vendor
  • The FASTLED capabilites/effects are as below. FASTLED is available here

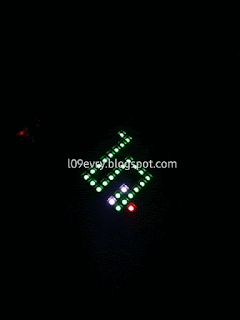

  • Raw images generated by gimp were used to show images as below.
  • Random images could be generated as an 8x8 bit field.
  • Could support emoticons.

  • An RTC DS3231 was added and a smaller 4x4 dot font was added.
  • This was too small to be intelligible and needed familiarity with the font.

  • An AWS instance was used to serve out raw images and also to cache a few RSS feeds.
  • This device would just access the service to either sync time/images or use a random headline from an news site like Times of India, NYT, WSJ, etc.
  • It could be extended to add other social media support as well.
  • The video below shows the usual effects with time, images and RSS. Sadly this was during the COVID-19 times and all the headlines were virus related.
